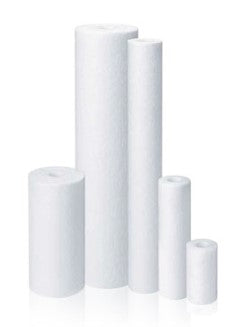

The SMB series 2.5”diameter cartridge’s is an economical solution for pre-filtration in many applications.
It is used as a pre-filter to remove dirt and suspended solids in highly turbid waters as a pre-filtration process for Activated Carbon (AC), Ultra-filtration (UF) and Reverse Osmosis (RO) systems.
Product Specifications
- Capability: Removes suspended solids and sediment particles
- Nominal pore size: 5μm
- Material: Polypropylene
- Cartridge configuration: Double Open End
- Change-out pressure difference: 1-bar
- Dimensions: Outer Diameter 63mm, Inner Diameter 28mm, Length 508mm (20")
- Weight: 0.3kg (without housing), 1.9kg (with housing)
